LC-07 profile illustration. Finish and lighting are illustrative.
LC-07 · Bulkhead corner
Compact detail for a bulkhead edge
A curved face and short stepped edges give LC-07 a compact, layered outline. It is shaped for a bulkhead’s horizontal outside corner, where it combines a decorative edge with concealed uplight. Consider it for a lounge, dining area or bedroom with the required bulkhead junction.
Use at a bulkhead’s horizontal outside corner. Do not use on a flat wall, at an inside corner or on a vertical outside corner.
Product prices, pack sizes, stock and shipping are shown by Nu Crown. Store purchases are separate from installation quotes.
Before you order
Do not substitute a flat-wall or vertical-corner detail. Read the LC-07 section against the actual bulkhead dimensions, including the setback and clearance to the ceiling. Its proportions differ from LC-01, so the two profiles should be compared using their own sections rather than appearance alone.

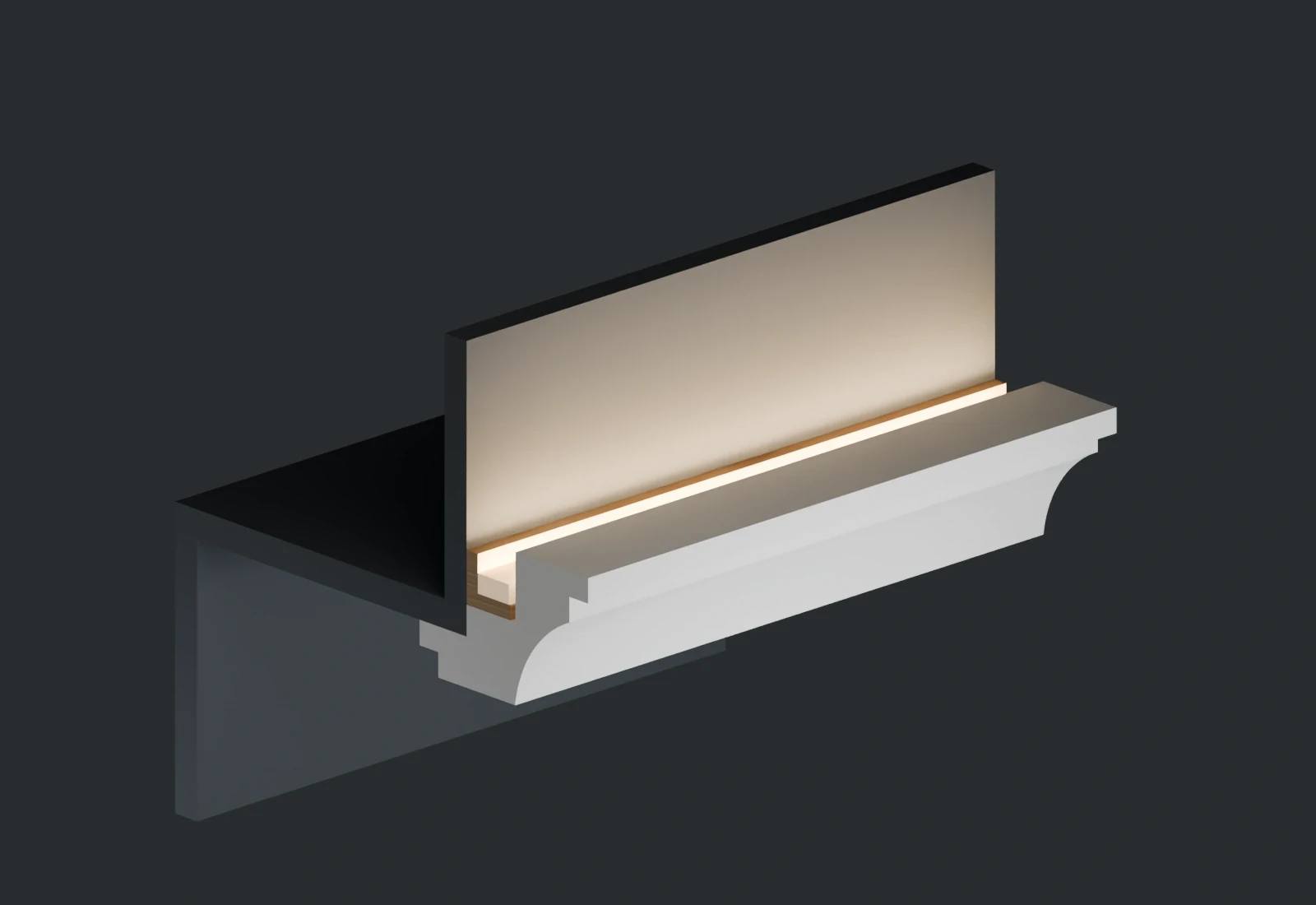

Coordinate the backing, upward-facing LED and accessible power supply before fitting the moulding. A short mock-up helps check the visible edge and the ceiling glow. Send a side-view photograph or drawing with your enquiry so the application can be reviewed before ordering.
See LC-07 in motion.
This animation shows how the moulding conceals the LEDs and directs light toward the ceiling. Review the section above for its intended application.
Read the visual description
An animated view shows the LC-07 moulding, its stepped or curved face and concealed ceiling light. Colours and light distribution are illustrative.
GTA only · supply & install special
$1,599 · regular $2,199
For a room up to 10 × 10 ft. Includes LED lights, mouldings, supply and installation.
Package and project pricing depend on site conditions, access, and the scope of work. Electrical hookups, dimmers, motion sensors and other options are discussed and quoted for your project. Furniture, safe working access, parking and unloading arrangements affect the quote. Preparation and conditions.
Ask About This PackageA softer glow starts with a conversation.
Share your room, your location and the atmosphere you have in mind.

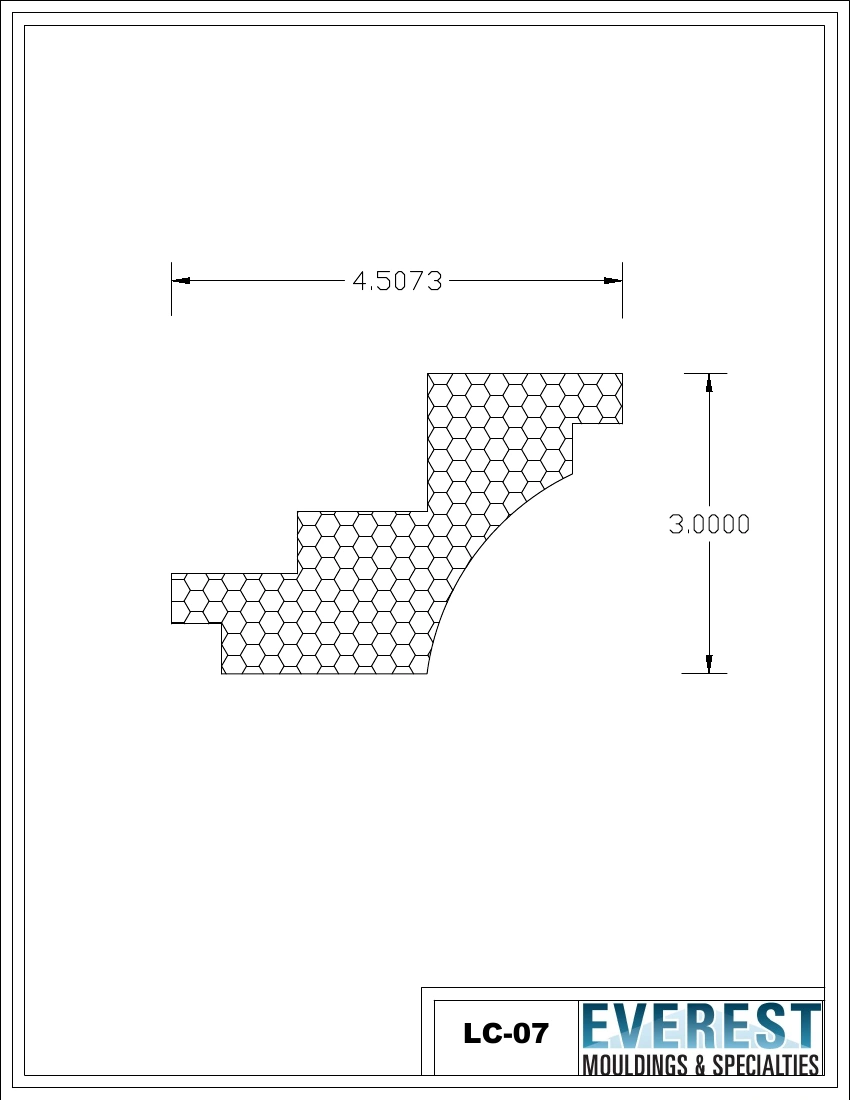

LC-07 source cross-section
Drawing width × height: 4.5073 × 3.0000 inches
Dimensions are in inches, as confirmed by Everest. Values are reproduced as printed; confirm the selected profile before ordering.
